Product Application

Handheld

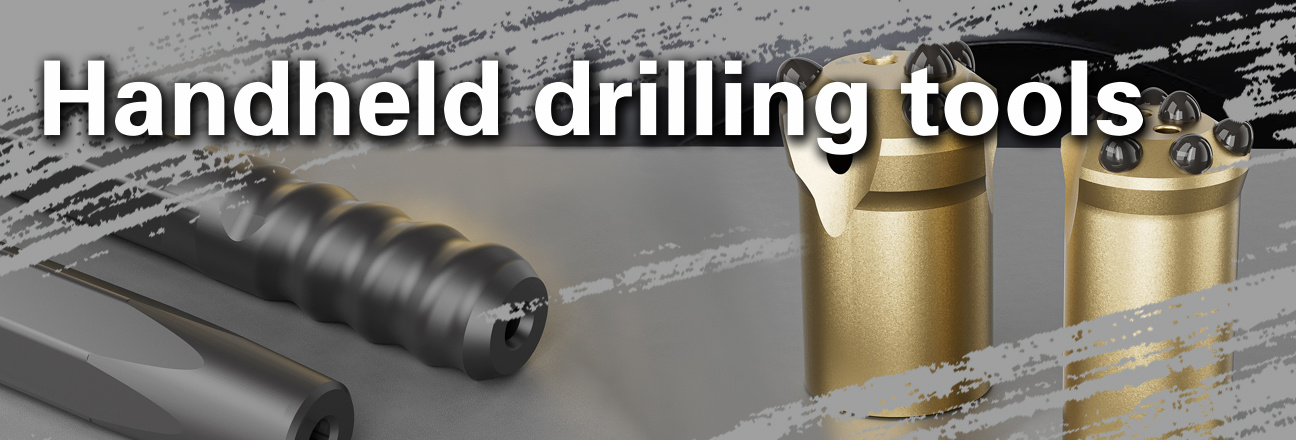

Handheld rock drills and their accessories

Taper flake-shaped drill bit	Taper of drill bit	7, 11, 12
Taper flake-shaped drill bit	Diameter of drill bit	32mm, 34mm, 36mm, 38mm, 40mm, 41mm, 42mm, 43mm, 45mm, 48mm, 51mm
Taper column-tooth drill bit	Taper of drill bit	7, 11, 12
Taper column-tooth drill bit	Diameter of drill bit	32mm, 34mm, 36mm, 38mm, 40mm, 41mm, 42mm, 45mm, 48mm, 51mm
Taper reaming bit	Taper of drill bit	11, 12
Taper reaming bit	Diameter of reaming bit	57mm, 64mm
Thread column tooth bit	Thread drill bit	R23, R25
Thread column tooth bit	Diameter of drill bit	32mm, 33mm, 35mm, 37mm, 38mm, 41mm, 43mm, 45mm, 51mm, 54mm
Taper of drill rod	Taper of drill rod	7, 11, 12
	Specification of drill rod	H22×108, H25×159
	Length of drill rod	600mm, 800mm, 900mm, 1000mm, 1200mm, 2100mm, 2400mm, 3050mm, 3900mm, 5900mm
Thread drill rod	Thread of drill rod	R23, R25
	Specification of drill rod	H22
	Length of drill rod	610mm, 915mm, 1220mm, 1525mm, 1830mm, 1750mm, 2095mm, 2300mm, 2440mm, 3090mm

Please download to view the technical parameters.

Related Downloads

2024-07-18

2023 Sample Data(Handheld)

Download
